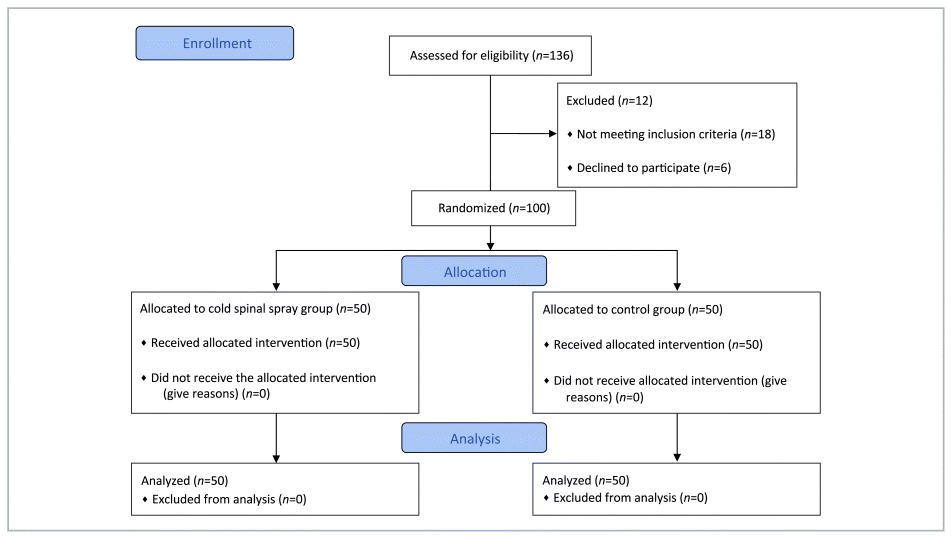

FIGURE 1 Consort Flow Diagram
Deenadayalan Boopalan,1 MD, Venugopal Vijayakumar,2 PhD, Poornima Ravi,3 BNYS, Manavalan Narayanasamy,4 ND (OSM), Arunthathi Rangarajan,4 MD, Maheshkumar Kuppusamy,5 PhD
ABSTRACT
Background: The application of cold to the spine is documented as favourable for reducing blood pressure in patients with hypertension (HTN). However, hydriatic application in the form of a cold spinal spray (CSS) has not yet been explored.
Objective: To find the effectiveness of CSS on cardio autonomic variables among males with HTN.
Methods: One hundred male patients with HTN visiting the outpatient service were included in this randomized controlled trial. A single session of CSS (15°C–19°C) was given to 50 patients for a period of 20 minutes for the study group, and the control group was made to lie down on the spinal spray tub for 20 minutes without any intervention. Baseline blood pressure and short-term heart rate variability (HRV) measurements were obtained prior to the intervention, followed by a subsequent assessment after a 20-minute interval for both groups.
Results: Following 20 minutes of CSS a significant decrease was observed in systolic blood pressure (136.48±14.15 mmHg to 126.20±13.18 mmHg, p<0.001), diastolic blood pressure (87.96±6.77 mmHg to 84.06±6.84 mmHg, p<0.006), pulse pressure (48.44±11.99 mmHg to 42.08±10.88 mmHg, p<0.007), and mean arterial pressure (104.09±8.12 mmHg to 98.05±7.88 mmHg, p<0.001). No significant changes were noted in HRV variables in either of the two patient groups.
Conclusion: The current study findings suggest that a single session of CSS intervention could lower both systolic & diastolic blood pressure, pulse pressure and mean arterial pressure in male hypertensive patients. Further studies are needed to find the long-term effect of CSS among patients with HTN.
Key Words Autonomic functions, cardiovascular disorders, complementary and alternative medicine, hydrotherapy, naturopathy
Hypertension (HTN) is a leading medical condition that is characterized by elevated systemic arterial blood pressure.1 Worldwide, HTN is estimated to cause 7.5 million deaths per year, which is around 12.8 % of the total all-cause mortality. A report from multi-national representative samples showed that the occurrence of HTN was higher in males than in females.2 In addition to being a primary contributor to chronic kidney failure, HTN also puts people at risk for heart failure, myocardial infarction, and stroke. In India, 300,000 of the 1.5 million annual fatalities caused by cardiovascular illnesses could be prevented with effective HTN control.3 The World Health Organization supports the combination of non-pharmacological treatments and conventional antihypertensive medications in people with HTN to facilitate better management and lower mortality rate.4 Massage, reflexology, mud therapy, hydrotherapy, acupuncture, and yoga are commonly used as non-pharmacological interventions to manage HTN.5 Hydrotherapy is also known as pool therapy, aquatic therapy, and water therapy in the naturopathic medical system.6 Hydrotherapy is used in various forms (water, ice, or steam) with the purpose of promoting health or treating a variety of disorders7–10 at different temperatures, pressures, lengths of time, and sites, either internally or externally.11 A localized, minimally pressurized (1 pound per square inch [PSI]) external hydrotherapy procedure called a spinal spray exposes the spinal region to water at a specified temperature for a predetermined amount of time in order to obtain the desired results.12 A previous study reported sympathetic domination among healthy male volunteers immediately after cold spinal spray (CSS).12 Another study showed that cold application in the form of a spinal bath with a duration of 20 minutes could reduce blood pressure in hypertensive patients.13 Therefore, the response to cold exposure on healthy individuals and those with HTN appears to be contradictory. The objective of this trial is to investigate the immediate effect of CSS in male patients with HTN.
The current study includes 100 male patients aged 30–70 years old, diagnosed with HTN, recruited for the study after obtaining signed informed consent. Patients with spinal deformities, systolic blood pressure (SBP) above 160 mmHg, diastolic blood pressure (DBP) above 100 mmHg, and more than two groups of anti-HTN medicine were excluded. The study was approved by the institution’s ethics committee.
Using G*power 3.1.9.4 software, the sample size was determined based on a recent study,13 with effect size = 0.414, alpha value = 0.05, and power = 0.80.
Through computerized randomization, patients were divided into two groups. To generate a sample size of 50 in each group, the simple randomization approach using a 1:1 ratio was applied to 100 patients. The sequentially numbered opaque and sealed envelope (SNOSE) approach was used for allocation concealment. An investigator who was not directly involved in the evaluation carried out the randomization. Patients in the control group (n=50) were made to lie down on the spinal spray tub without receiving the CSS, whereas the research group (n=50) received the CSS. Baseline and 20-minute post-intervention data were collected for all patients at the same time of day, between 9 am and 12 pm. Figure 1 consort chart represents the schematic design of the study.
The CSS group was instructed to wear minimal clothing, exposing their entire back to the flowing stream of water while lying on the spinal spray tub. The spinal spray tub features a centrally positioned fiber-perforated tube, which is connected via a pipeline to a 0.5 HP (horsepower) motor located underneath the tub and connected to the water supply. The patient was positioned supine on the bathtub, and the instrument was activated with water at 15°C to 19°C. Over a duration of 20 minutes, a continuous stream of water was sprayed into the spinal area through the perforated tube. In contrast, patients in the control group were instructed to wear minimal clothing and spend 20 minutes lying on the spinal spray tub without receiving cold-water spraying.
Using a non-invasive arm-type semiautomated electronic blood pressure monitor (Omron), blood pressure readings were recorded before and immediately after 20 minutes in both groups in a sitting position. A minimum of two measurements were made, with a rest period of 1 minute between the measurements, and the final outcome was calculated using the average of two readings. If the difference between the two measurements was > 10 mmHg, a third measurement was taken after a 1-minute rest period, and the average of the two measurements that did not differ by > 10 mmHg was used to get a final value.
A 16-channel polygraph was used to measure the heart rate (HR) and short-term heart rate variability (HRV) before and after the intervention (BIOPAC MP160, 16-channel polygraph). For the purpose of recording the electrocardiogram, the Ag/AgCl pre-gelled electrodes were positioned using the limb lead II configuration. Data was collected using a 2000 Hz sampling rate. Using HRV analysis software (Kubios HRV version 2.0) created by the Biomedical Signal Analysis Group, baseline and post-intervention HRV data was collected and tabulated into time domain and frequency domain analysis (University of Kuopio, Finland). The time domain HRV variables include (1) the mean of the intervals between adjacent QRS complexes or the instantaneous heart rate (RRI), (2) the standard deviation of RR intervals (SDNN), (3) heart rate (HR), (4) Root mean square of successive RR interval differences (RMSSD), (5) the number of interval differences of subsequent NN intervals greater than 50 ms (NN50), and (6) percentage of successive RR intervals that differ by more than 50 ms (pNN50). Similar to this, the frequency domain of HRV is also examined, including the low-frequency (LF) band (0.04–0.15 Hz) and high-frequency (HF) band (0.15–0.4 Hz) in normalized units. The following formulas were used to calculate measurements such as mean arterial pressure (MAP) and pulse pressure (PP). SBP – DBP was used to calculate PP, and (DBP + 1/3*PP) was used to calculate MAP.14
Means and standard deviations are used to express data (mean±SD). The Kolmogrov-Smirnov test was used to determine whether the data was normal. Indicating a normal Gaussian distribution was a p value of > 0.05. R statistical software version 4.2.0 was used to run the Wilcoxon signed rank test, Mann Whitney U test, and paired and unpaired t-test on the HRV data sets because they were not normally distributed.
In total, 136 patients were recruited for the trial, of whom 100 met the inclusion criteria (Figure 1). The CSS group consisted of 50 patients, with an average age of 54.02 ± 7.47 years and a BMI of 26.43 ± 3.24 kg/m2. The control group also comprised 50 patients, with an average age of 54.48 ± 9.84 years and a BMI of 27.89 ± 5.21 kg/m2. Among the patients in the CSS group, 32% were on diuretics, 36% were on ACE inhibitors, and 30% were on beta-blockers. In the control group, 26% were taking diuretics, 34% were on ACE inhibitors, and 32% were on beta-blockers.
Demographics of the patients who participated in the study are presented in Table 1. No significant differences were noted between the groups at baseline, and they were comparable. Immediately after CSS, a significant reduction in SBP (p<0.001), DBP (p<0.006), PP (p<0.007) and MAP (p<0.001) was noted in the CSS group. For the HRV, all variables (RRI, HR, SDNN, RMSSD, NN50, pNN50, LF, HF, LF/HF ratio) showed no significant changes in both CSS and control groups (Table 2).

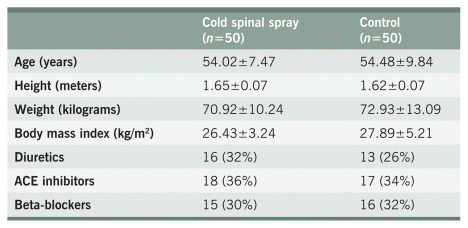

TABLE 1 Demographic and anthropometry details of participants

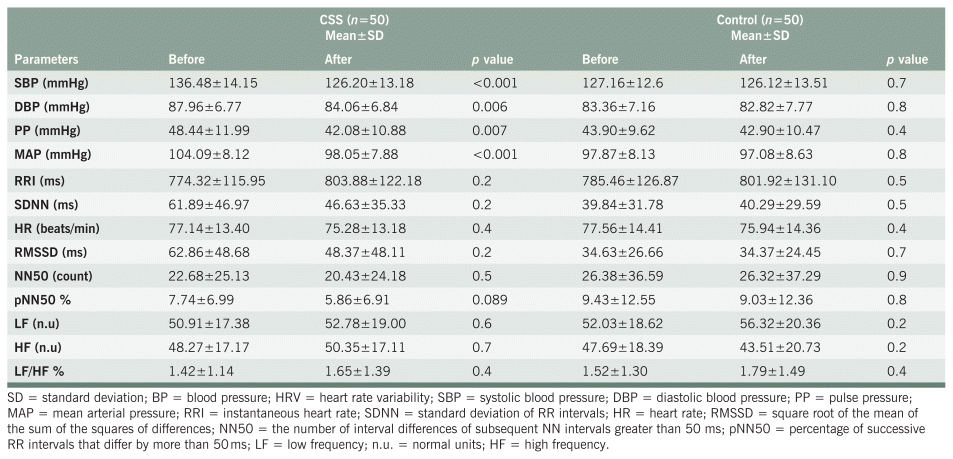

TABLE 2 Changes in BP, and HRV parameters in included patients
The current randomized controlled trial aimed to measure the effects of CSS on blood pressure and heart rate variability in male patients with HTN. This study found that a single session of CSS decreased SBP, DBP, PP and MAP in male patients with HTN. However, no changes in HRV parameters were observed in our study. In contrast, a previous study involving 60 patients with HTN reported significant reductions in LF, LF/HF ratio, and significant improvement in HF after 20 minutes of CSS by employing water temperatures between 18°C and 24°C.15 The CSS possibly has an impact on all organs through nerves which are connected with the spine. Based on the temperature used in spinal spray, blood vessels may constrict or dilate.12 Twenty minutes of cold application to the spine resulted in the activation of the parasympathetic system. It is widely documented that temperature affects blood pressure, which might be the cause for the decrease in SBP, DBP, PP and MAP in our study.15
In the current study, one of the following possible mechanisms might have led to the reduction in blood pressure. CSS may lead to immediate vasoconstriction which results in an increase of vascular pressure thereby activating the baroreceptors in the aorta and carotid sinus. This reduces sympathetic activity by stimulating the vagus nucleus and causing vasodilation and a drop in blood pressure.16 CSS activates the transient receptor potential cation channel subfamily M (melastatin) member 8 (TRPM8) which is a thermally modifying sensory neuronal protein. TRPM8 reduces sympathetic activity and has a hypotensive effect.17 Additionally, localized activation of TRPM8 by cold promotes the release of Ca2+ in the sarcoplasmic reticulum, which depletes stores of Ca2+ and inhibits vasoconstriction.18 An increase in SBP of 10 mmHg will increase the risk of secondary cardiovascular disease (CVD) events by 15%. SBP is a more reliable indicator of cardiovascular diseases, particularly in persons under 50.19 MAP, which is described as the average blood pressure during the cardiac cycle, is a vital element in the perfusion of significant organs. Even more than SBP and DBP, MAP has been proven to have clinical prognostic value in predicting the risk of CVDs, and it has also been shown to be a primary risk factor for predicting the risk of stroke.20 Similarly, PP is the difference between SBP and DBP which predict adverse health outcomes in populations, and patients with cardiovascular or renal disease.21
No adverse effects were reported by the patients. This study had limitations in that it only assessed the immediate effects of CSS on blood pressure in male patients with HTN. Future research should aim to investigate the long-term effects of CSS on BP to provide further substantiation of our findings. Another potential limitation was the inclusion of only male patients, driven by the higher prevalence of HTN in males compared with females. However, this restriction limits the generalizability of our conclusions to a broader population. The absence of female participants hinders our ability to evaluate gender-specific effects, thereby reducing the applicability of our findings. To address this limitation, future studies should consider including both male and female participants to enable a comprehensive evaluation of gender differences and enhance the external validity of the results.
The study finding suggests that CSS could reduce blood pressure in male patients with HTN. Further randomized controlled trials are required to determine the long-term effects of CSS on HTN.
1Senior research fellow, National Institute of Mental Health and Neurosciences, Bengaluru, Karnataka, India;
2Department of Yoga, Govt. Yoga & Naturopathy Medical College & Hospital, The Tamilnadu Dr., MGR Medical University, Chennai, India;
3Senior Research Fellow, Sri Ramachandra Institute of Higher Education and Research. Chennai, India;
4Department of Naturopathy, Govt. Yoga & Naturopathy Medical College & Hospital, The Tamilnadu Dr., MGR Medical University, Chennai, India;
5Department of Physiology, Govt. Yoga & Naturopathy Medical College & Hospital, The Tamilnadu Dr., M.G.R Medical University, Chennai, India.
Not applicable.
We have read and understood the CANDJ’s policy on conflicts of interest and declare that we have none.
This research did not receive any funding
1. Bell K, Twiggs J, Olin BR, Date IR. Hypertension: the silent killer: updated JNC-8 guideline recommendations. Alabama Pharmacy Association. 2015;334:4222.
2. Mohanty P, Patnaik L, Nayak G, Dutta A. Gender difference in prevalence of hypertension among Indians across various age-groups: a report from multiple nationally representative samples. BMC Public Health. 2022;22(1):1524.
Crossref PubMed PMC
3. Anchala R, Kannuri NK, Pant H, et al. Hypertension in India: a systematic review and meta-analysis of prevalence, awareness, and control of hypertension. J Hypertens. 2014;32(6):1170.
Crossref PubMed PMC
4. World Health Organization. A global brief on hypertension: silent killer, global public health crisis: World Health Day 2013. World Health Organization; 2013.
5. Maheshkumar K, Venugopal V, Poonguzhali S, Mangaiarkarasi N, Venkateswaran S, Manavalan N. Trends in the use of yoga and naturopathy based lifestyle clinics for the management of non-communicable diseases (NCDs) in Tamilnadu, South India. Clin Epidemiol Glob Health. 2020;8(2):647–651.
Crossref
6. Deenadayalan B, Venugopal V, Poornima R, et al. Analgesic effect of hydrotherapy: a narrative review of current evidence. CAND J. 2022;29(4):12–15.
Crossref
7. Chidambaram Y, Vijayakumar V, Boopalan D, Arjunan A, Ravi P, Kuppusamy M. Immediate effect of fomentation on pulmonary function in patient with bronchial asthma: a case series. TMR Integr Med. 2022;6:e22018.
Crossref
8. Pandiaraja M, Vanitha A, Maheshkumar K, Manavalan N, Venugopal V. Effects of 12 sessions of steam bath intervention on spirometry parameters among healthy adult volunteers. J Complement Integr Med. 2022;19(2):413–416.
Crossref
9. Mooventhan A, Venugopal V, Chaudari SS. Twenty minutes of gastro-hepatic pack reduces blood glucose levels in patients with type 2 diabetes mellitus: a pilot single group pre–post study. Adv Integr Med. 2020;7(3):148–151.
Crossref
10. Mooventhan A, Chaudhari S, Venugopal V. Effect of cold hip bath on blood glucose levels in patients with type 2 diabetes mellitus: a pilot study. Diabetes Metab. 2019;46(5):411–412.
Crossref PubMed
11. Fleming SA, Gutknecht NC. Naturopathy and the primary care practice. Prim Care. 2010;37(1):119–136.
Crossref PubMed PMC
12. Avanthika G, Sujatha K, Shetty P. Immediate effect of cold and neutral spinal spray on autonomic functions in healthy volunteers—a comparative study. IOSR J Dent Med Sci. 2017;16:18–24.
13. Shetty G, Shetty P, Shetty B. Immediate effect of cold spinal bath on autonomic and respiratory variables in hypertensives. World J Pharm Med Res. 2016;2:236–240.
14. Stens J, Hering JP, van der Hoeven C, et al. The added value of cardiac index and pulse pressure variation monitoring to mean arterial pressure-guided volume therapy in moderate-risk abdominal surgery (COGUIDE): a pragmatic multicentre randomised controlled trial. Anaesthesia. 2017;72(9):1078–1087.
Crossref PubMed
15. Paily AK, Shetty GB, Shetty P, Sujata KJ. Immediate effect of cold spinal spray on autonomic variables in hypertensive individuals—a randomised control trial. Int J Sci Res. 2020;9(10):396–401.
16. Baker SE, Limberg JK, Dillon GA, Curry TB, Joyner MJ, Nicholson WT. Aging alters the relative contributions of the sympathetic and parasympathetic nervous system to blood pressure control in women. Hypertension. 2018;72(5):1236–1242.
Crossref PubMed PMC
17. Huang F, Ni M, Zhang JM, Li DJ, Shen FM. TRPM8 downregulation by angiotensin II in vascular smooth muscle cells is involved in hypertension. Mol Med Rep. 2017;15(4):1900–1908.
Crossref PubMed
18. Johnson CD, Melanaphy D, Purse A, Stokesberry SA, Dickson P, Zholos AV. Transient receptor potential melastatin 8 channel involvement in the regulation of vascular tone. Am J Physiol Heart Circ Physiol. 2009;296(6):H1868–H1877.
Crossref PubMed PMC
19. Mason PJ, Manson JE, Sesso HD, et al. Blood pressure and risk of secondary cardiovascular events in women: the Women’s Antioxidant Cardiovascular Study (WACS). Circulation. 2004;109(13):1623–1629.
Crossref PubMed
20. Wang D, Wang J, Liu J, et al. The role of cumulative mean arterial pressure levels in first stroke events among adults with hypertension: a 10-year prospective cohort study. Clin Epidemiol. 2022;14:665.
Crossref PubMed PMC
21. Wei F-F, Wu Y, Xue R, et al. Clinical significance of mean and pulse pressure in patients with heart failure with preserved ejection fraction. Hypertension. 2022;79(1):241–250.
Crossref
Correspondence to: Dr. K. Maheshkumar, BNYS, MSc, PhD, Assistant Medical Officer/Lecturer Grade II, Department of Physiology, Government Yoga and Naturopathy Medical College and Hospital, Chennai-600106, India. E-mail: doctor.mahesh1985@gmail.com
To cite: Boopalan D, Vijayakumar V, Ravi P, Narayanasamy M, Rangarajan, A, Kuppusamy M. Effectiveness of cold spinal spray on blood pressur e and heart rate variability in patients with hypertension—A randomized controlled trial. CAND Journal. 2023;30(3):23-27. https://doi.org/10.54434/candj.140
Received: 18 March 2023; Accepted: 28 July 2023; Published: 28 September 2023
© 2023 Canadian Association of Naturopathic Doctors. For permissions, please contact candj@cand.ca.
CAND Journal | Volume 30, No. 3, September 2023
